Head Rail Performance Features:
1. reduction ratio 1:1 and 1:1.5 can be chosen;
2.no-load tension is less than 0.3kg;
3.Max load 6kg,Max area ≤10㎡.
Middle Duty Performance Features:
1.This series of roller blind system inclide reduction ratio 1:1 and 1.5;
2.Clutch with no-load tension is less than 0.3kg;
3.Max load 6kg; Use for roller blinds less than 10㎡.
Shangrila Blinds System

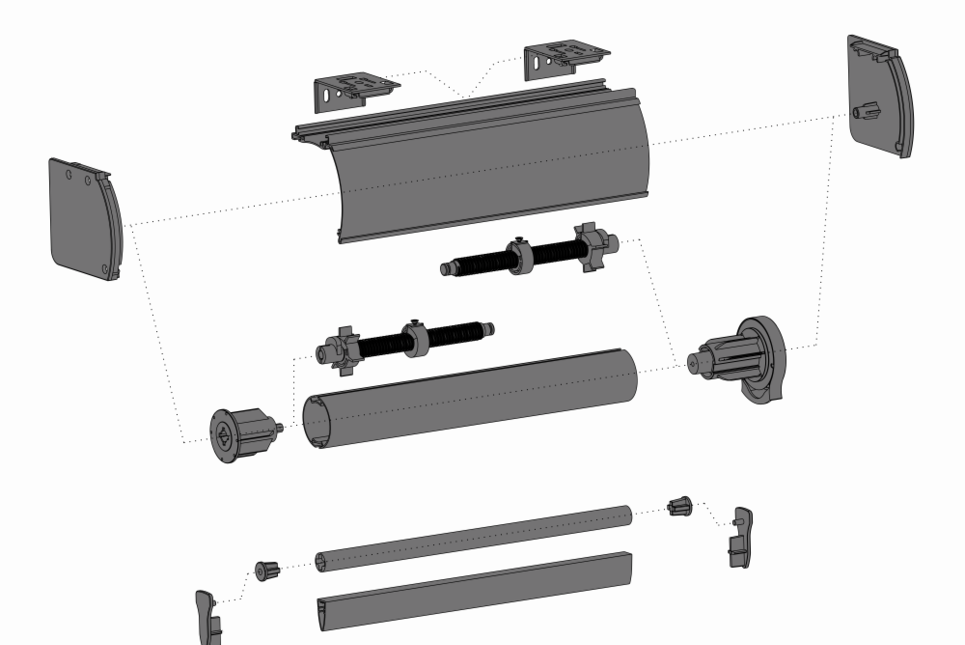

Zebra Blinds System
Winder of the clutch:
1.fixed and rotating clutch can be choosen;
2.metal core technology, high-quality piano wire springs,3 springs and 4 springs can be choosen;
3.reduction ratio 1:1/1:1.5/1:1.65/1:1.7,none gear/6 gears/8 gears can be choosen;
4.Max load 5kg/6kg/8kg/10kg,Use for roller blinds ≤ 8/10/12/14㎡.
Light Duty Performance Features:
1. reduction ratio 1:1 and 1:1.5 can be chosen;
2.no-load tension is less than 0.3kg;
3.Max load 8kg,Max area ≤8㎡.
Heavy Duty Performance Features:
1.reduction ratio 1:1.65; labor saving 30%;
2. no-load tension is less than 0.3kg;
3.Max load 8kg,Use for roller blinds ≤ 14㎡.
+86.13728267791
Sansheng Industrial Park, Xiusheng Road , Renhe Town,baiyun guangzhou 11 523112 CN

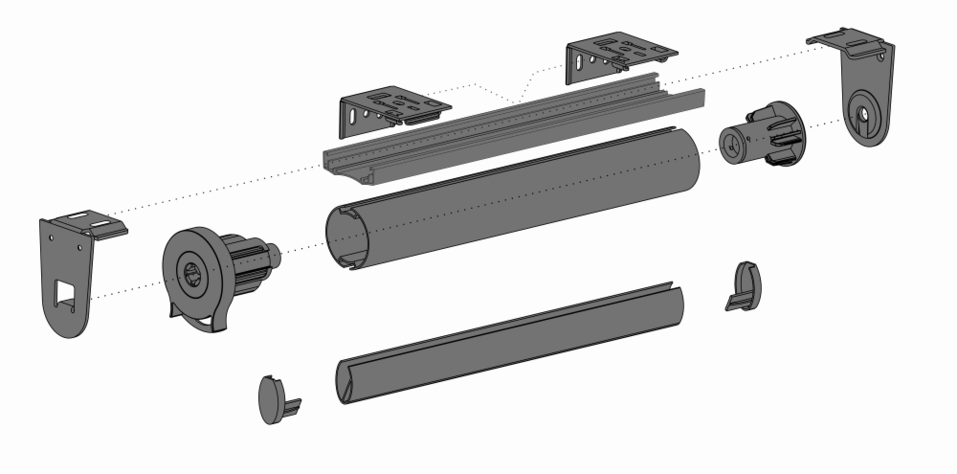

Classical Normal System
Head Rail Construction Features:
1.metal core technology;
2.Use high quality piano wire springs;
3.springback type idler, reserved chain installation holes design;
4.simple style.System runs smooth and noiseless.
5.It can be match head rail.
Heavy Duty Construction Features:
1.Special installation of pulling chain;
2.metal core technology, high-quality piano wire springs;
3.Use PA66+GF,POM,PC, high-quality engineering plastics;
4.Three-level springback type idler;
5.fixed and rotating clutch can be choosen;
6.Left and right installation of double roller blinds can be choosen;
7. simple style; good choice of engineering roller blinds.
Middle Duty Construction Features:
1.Clutch with metal core, piano wire springs;
2.Apply to ￠37.2-￠37.8 38mm/43mm tube of various specification;
3.Three-level springback type idler, clutch with chain installation holes design;
4.Left and right operation double roller blinds system can be offered;
5.Fixed and rotating clutch can be offered;
6.Simple style, system runs smooth and noiseless, good choice of engineering roller blinds.

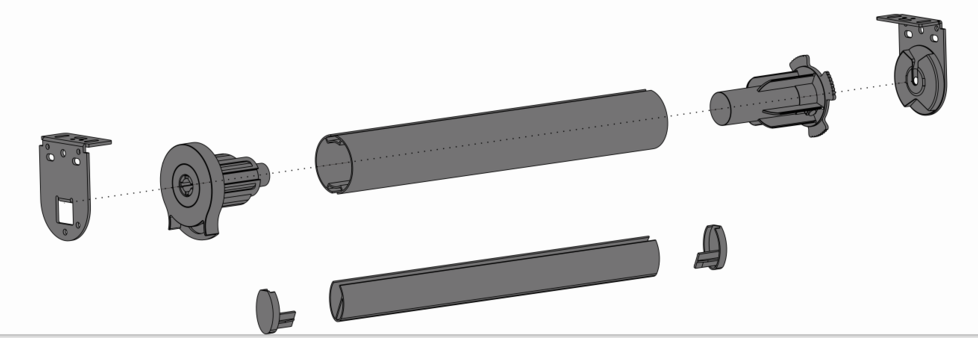

Light Duty Construction Features:
1.Apply to 28/38mm/43mm tube of various specification;
2.Difference:Dimension,Structure&material,working load,End plug and bracket.
3.Pulling and lifting is even and smooth.low noise and long service life.

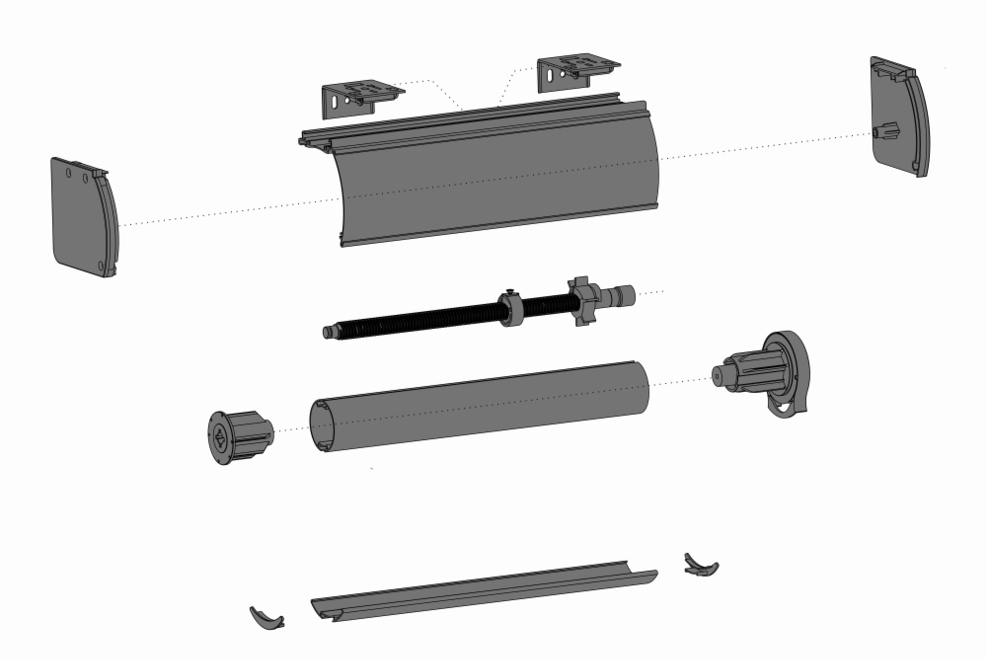

Head Rail System
Components
